Product Information

Brand:

Hinkley

Brand Category:

Fan

Brand Product Description:

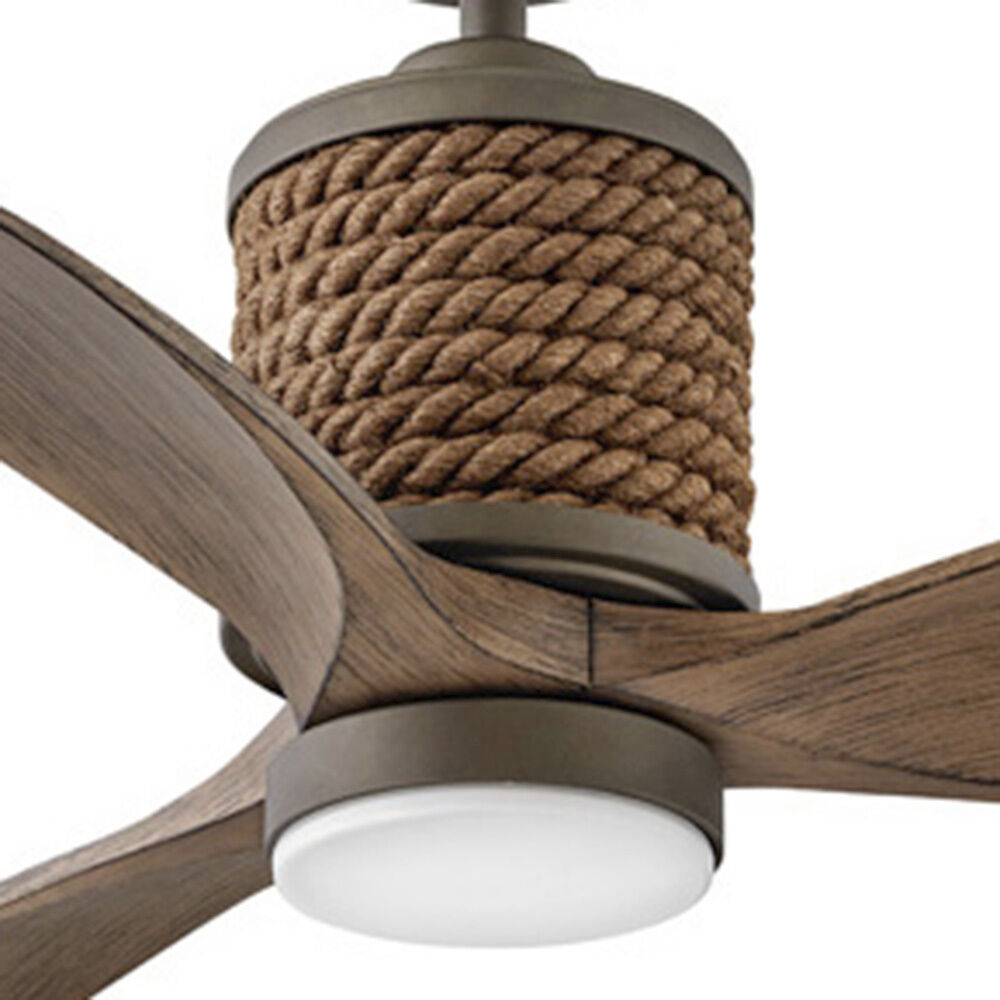

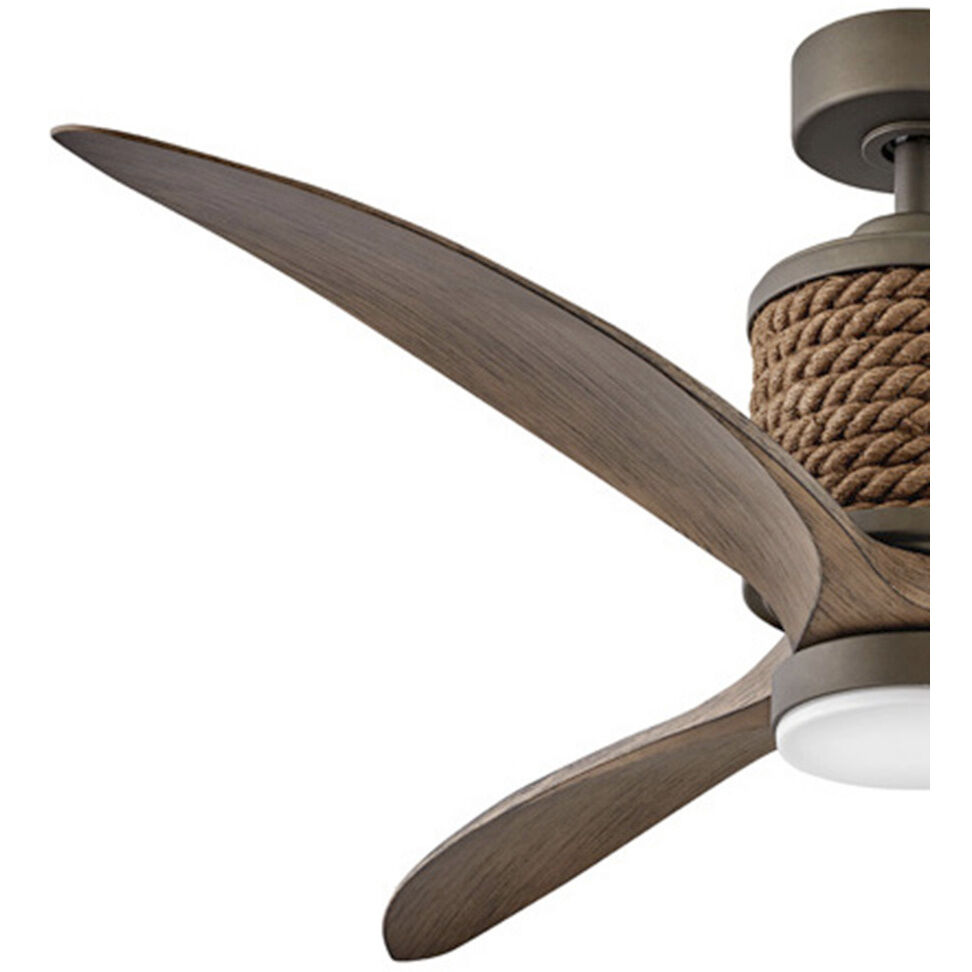

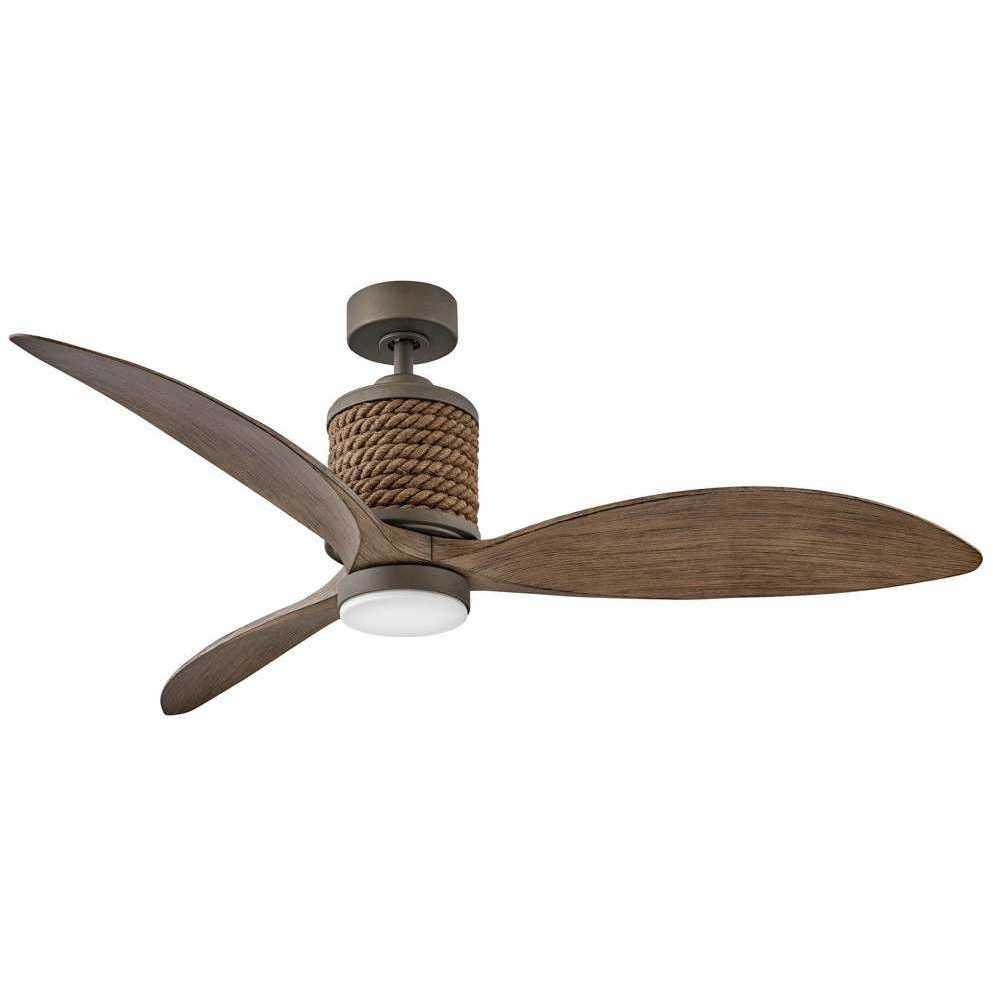

Marin 60" LED Fan

Shipping Method:

Ground

SKU:

903160FMM-NDD

UPC:

640665019162

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3000K

Dimmable:

Yes

Efficiency:

239

Lamping Category:

LED

Lamping Features:

• Life Span: 50000
• Incandescent Equivlancy: 1 x 100w

Lamping Included:

Bulbs Included

Lamping Type:

Integrated LED

Lead Wire Length:

76.00

Lumens:

1320

Voltage:

120v

Wattage Max:

16.00

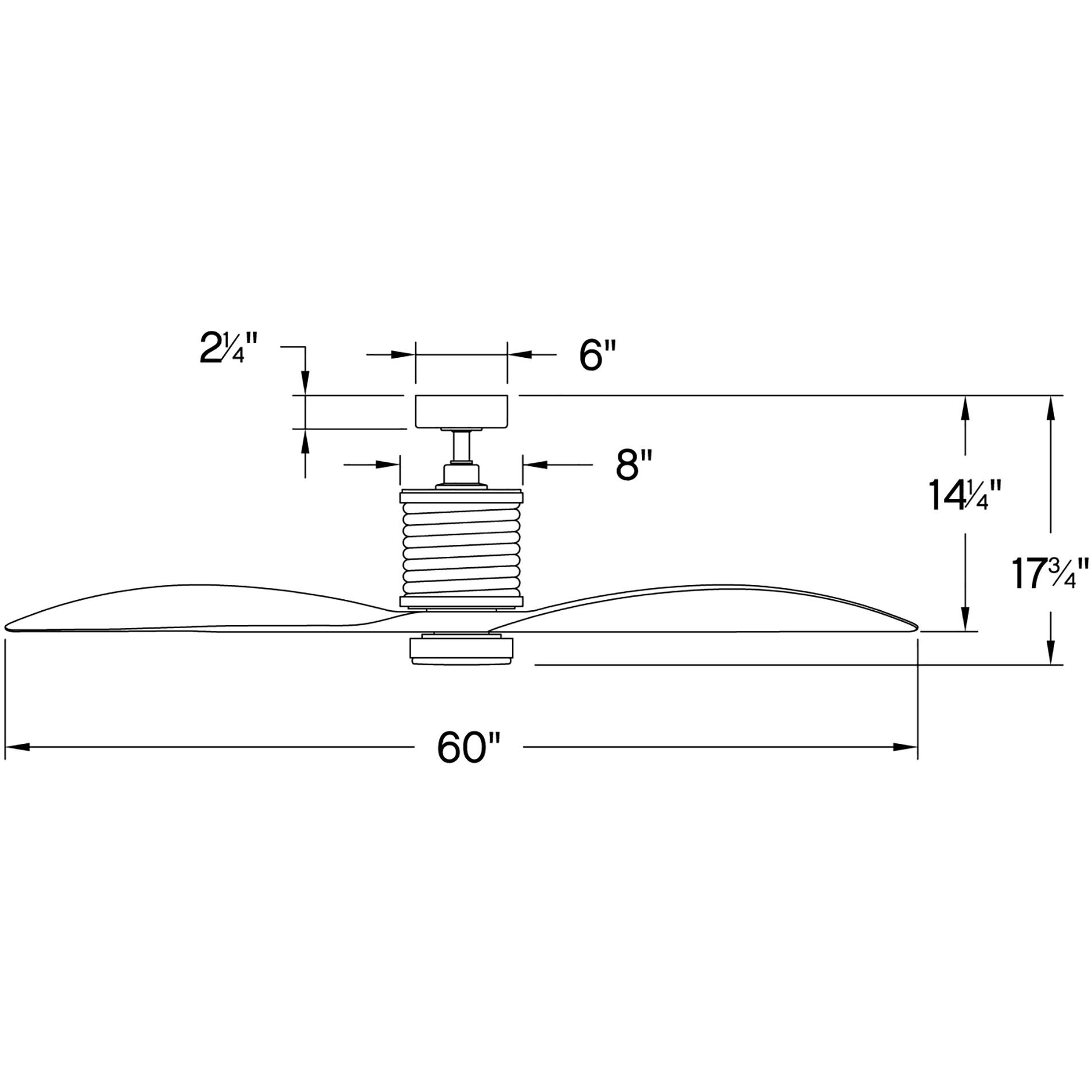

Dimensions and Measurements

Backplate/Canopy Extension:

2.25

Backplate/Canopy Height:

2.25

Backplate/Canopy Width:

6

Diameter:

60

Height:

17.75

Length:

60

Weight:

21.00

Width:

60

Fan Blade Information

Fan Blade Pitch:

16.00

Fan Blade Span:

60

Number of Fan Blades:

3

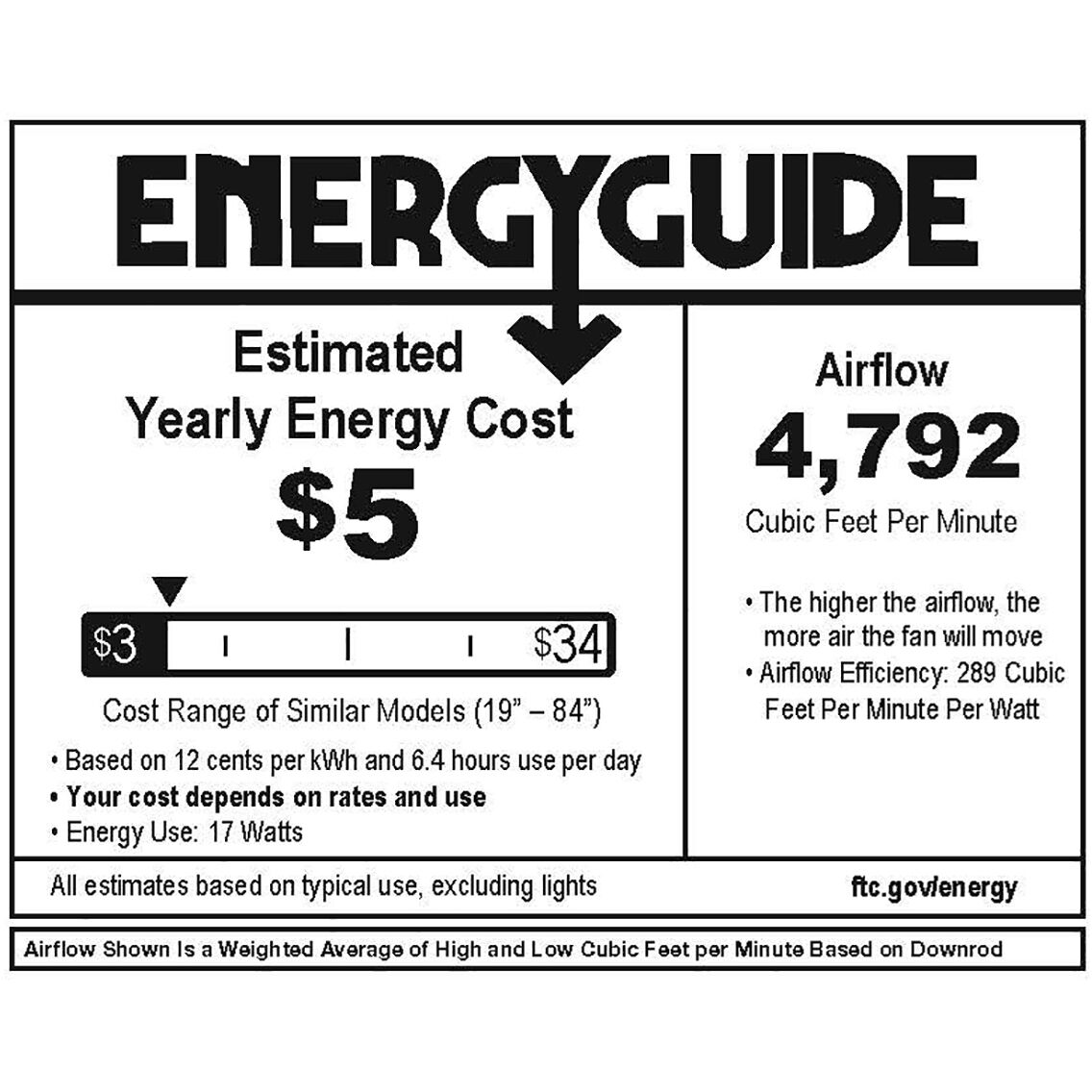

Fan Operational Information

Fan Features:

• Energycost High: 7
• Energycost Avg: 5
• Efficiency High: 239
• Efficiency Avg: 273
• Airflow High: 6339
• Airflow Avg: 4792
• Energyuse High: 26.5
• Energyuse Avg: 17
• Amps High: 0.36
• Amps Avg: 0.21
• RPMs High: 105
• RPMs Avg: 75
• Ceiling To Blade Height: 14.25
• Motor Name: 125 X 30
• Motor Type: DC
• Fan Speed: 6 Speed
• Reversing Control: Yes
• Single Power Switch: Yes
• Receiver Included: Yes
• Fan Control Included: Yes
• Blades Included: Yes
• Blade Options Available: No
• Blade Material: Composite
• Blades Reversible: No
• Light Kit Included Removeable: Yes
• Light Kit Adaptable: No

Motor Wattage:

26.5

Unit Air Flow:

6339

Included Components

Light Kit Included:

Yes

Warranty and Specifications

Country of Origin:

CHINA

Prop 65:

Yes

Title 24:

Yes

UL Ratings:

UL/C-US Damp Rated

Warranty:

LED components carry a 5-year limited warranty; Blades, controls, switches, capacitors and hardware carry a 1 year warranty; Motor carries a lifetime warranty

Additional Details

Chain Cord Features:

4.5" Rod

Features:

• CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Dimmable: Yes - CL Type Dimmer (SSL7A)
• Install Sloped Ceiling: Yes / Slope Degree: 20
• Operating Frequency: 60
• Wifi Control Optional: NoWifi Control Included: Yes
• Dual Mount: No
• Fan Control included, 6 Spd HIRO:R
• FAN: 7ft from floor, FAN: Install Slope Ceiling
• This item includes a 4.5" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
• This item includes a light kit coverFan Control included, HIRO Control - 6 Speed ReversingSuitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety StandardsMeets California Energy Commission 2013 & 2016 Title regulations/JA8WiFi compatibility with included fan controlThis item may be hung on a sloped ceilingCrisp, minimal design with elegant details make a fresh, modern impactSingle power source requiredWarm rich light bronze toneFans should be installed at a minimum of 7 feet from the floor

Glass Features:

Etched Opal

Material:

Steel

Switch Features:

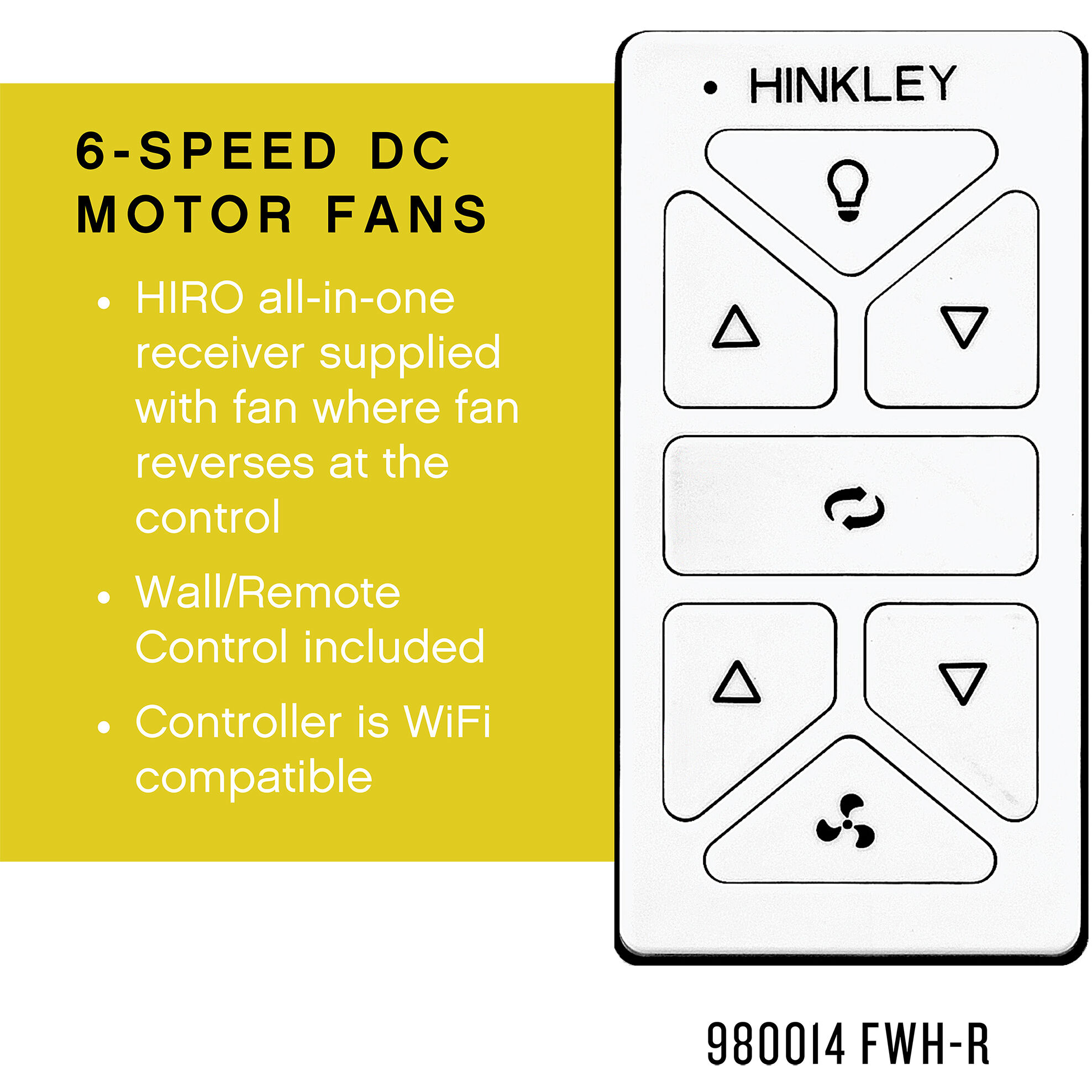

HIRO Control - 6 Speed Reversing
