Product Information

Brand:

WAC Lighting

Brand Category:

Downrod Ceiling Fans

Brand Product Description:

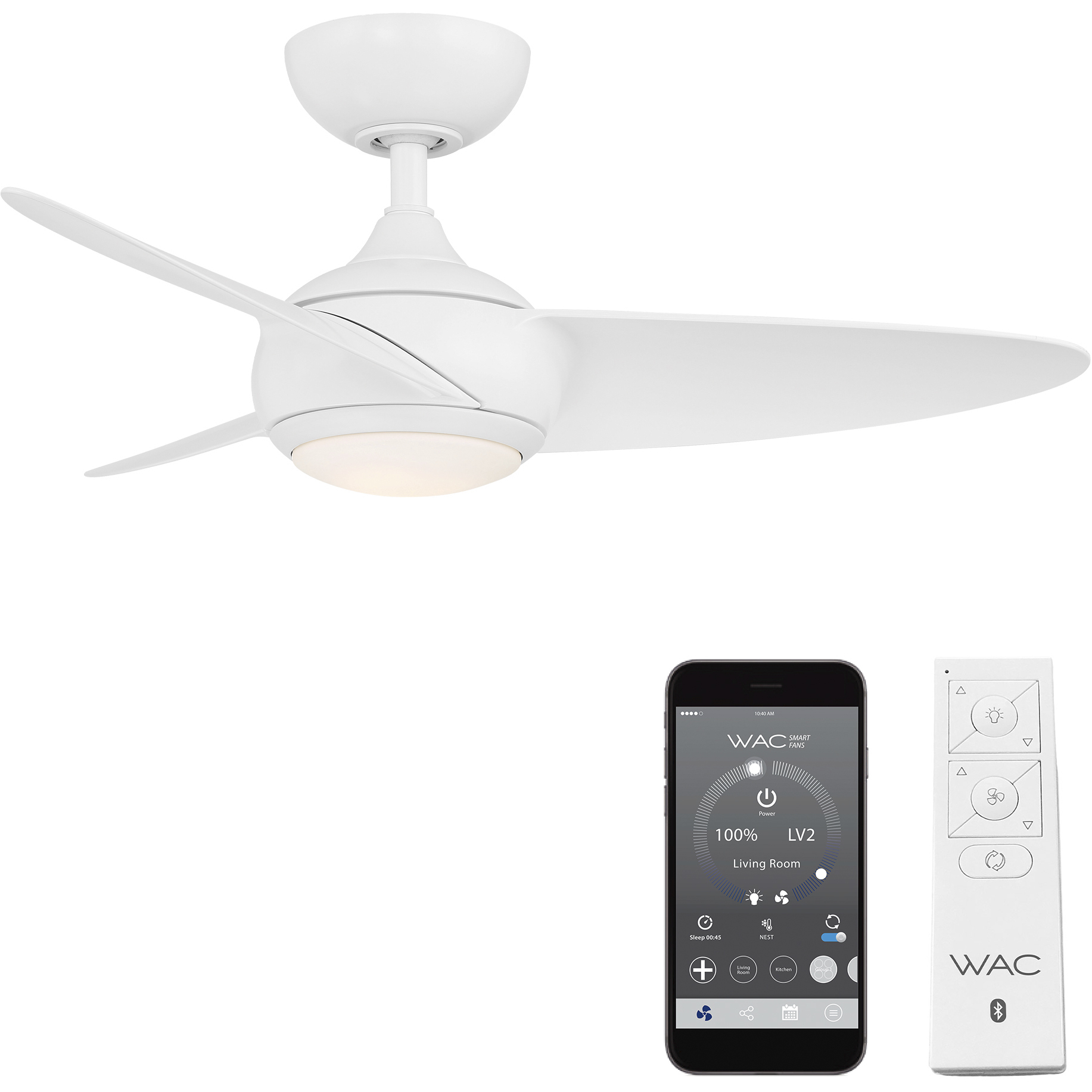

Loft Indoor or Outdoor 3-Blade 38in Smart Ceiling Fan in Matte White with 3000K LED Light Kit and Remote Control

Shipping Method:

Ground

SKU:

F-094L-MW

UPC:

197179000518

Electrical and Operational Information

Color Rendering Index:

90

Color Temperature:

3000K

Dimmable:

Yes

Efficiency:

133

Lamping Category:

LED

Lamping Features:

• Delivered Lumens: 408
• Beam Spread: Flood
• Average Hours: 50000
• Light Direction: Down

Lamping Included:

Bulbs Not Included

Lamping Type:

Intergrated LED

Lead Wire Length:

80

Lumens:

1100

Primary Number of Bulbs:

1

Total Number of Bulbs:

1

Total Watts:

37.00

Voltage:

120

Wattage Max:

13.00

Dimensions and Measurements

Backplate/Canopy Height:

7

Backplate/Canopy Width:

7

Diameter:

8.75

Height:

12.9

Weight:

17.00

Width:

38

Fan Blade Information

Fan Blade Pitch:

18.00

Fan Blade Span:

38

Number of Fan Blades:

3

Fan Operational Information

Fan Features:

• WAC Smart Fans can be controlled from the WAC Smart Fan app, enabling smart features and full control of your fan from an iOS or Android device. Download the app to pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Ecobee, Control4, and Josh AI. Coming Soon: Savant, Lutron Homeworks, and Nest.
• The WAC Smart Fan iOS or Android app can sync with your ceiling fan to control fan speed, use smart features like breeze mode, adaptive learning, create groups, and reduce energy costs.
• Battery operated Bluetooth remote control with wall cradle is included (Part RC20-WT). An optional Bluetooth hardwired wall control is sold separately (Part WC20-WT). Wall and remote control use Bluetooth for improved range and can control an unlimited amount of fans within range.
• WAC Smart Fans are made with incredibly efficient and completely silent DC motors and are up to 70 more efficient than traditional fans. Every fan is factory-balanced and sound tested to ensure each fan will never wobble, rattle or click.
• Features an energy efficient replaceable LED light kit with up to 1600 lumens and 90CRI in a 3000K color temperature. LED light kit can be dimmed smooth and continuously.
• UL & cUL Wet Location Listed for indoor or outdoor applications. Energy Star Certified for energy efficiency. Can be installed on slope ceilings up to a 30 degree slope (SKU SC-FINISH Slope Ceiling Kit available for 30-45 degrees). Includes a 6in Downrod. Additional downrod lengths sold separately (SKU DR-FINISH).
• Complete: Yes
• Product Sub-Type: Indoor or Outdoor Smart Home Ceiling Fan
• Blade Height: 8.9
• Interior/Exterior: Interior/Exterior
• Sloped Ceiling Adaptable: Yes
• Maximum Slope: 30 deg (7/12 pitch)
• Low Ceiling Adaptable: Yes
• Optional Control Type: iOS/Android App, Wifi, Voice, Remote Control, Wall Panel, Wall Control
• Speeds: 6
• Reversible Motor: Yes
• Motor Type: DC
• CFM: High: 4057, Average: 2467, Low: 685
• RPM: High: 215, Low: 39
• Motor Size: DCS-10NS
• Airflow Efficiency: Average: 133
• Motor Power Watts: High: 24, Average: 19
• Yearly Energy Cost: 5
• Loudness: 15db
• Amperage (High): 0.34
• Blades Included: Yes
• Blade Material: ABS
• Reversible Blades: No
• Blade Length: 14.6
• Light Kit Diffuser: Frosted Glass
• Light Kit Adaptable: Yes
• Light Kit Type: LED
• Cap Included: No
• Pull Chain Included: No
• Remote Included: Yes
• Wall Control Included: No
• Receiver Included: Yes
• Remote Features: Bluetooth Remote Control, Android or iOS Device
• Remote Battery Specs: Includes 1 CR2032 Coin Type 3V Lithium Battery
• Wall Control Features: Bluetooth Wall Control with on/off, 6 speed, reverse, and dim to 1 (Sold Separately)
• Fan Blades Replace: RPL-F-094-38-BD-MW
• Shade Replace: RPL-F094-GLA
• Light LED Replace: Sold Separately
• Receiver Replace: F-R3-053-054
• Remote Control: F-RCBT-WT
• Wall Controls: WC20-WT
• Downrods: DR12-MW, DR18-MW, DR24-MW, DR36-MW, DR48-MW, DR60-MW, DR72-MW
• Sloped Ceiling Kits: SC-MW

Motor Wattage:

19

Included Components

Light Kit Included:

Yes

Warranty and Specifications

ADA:

Yes

Country of Origin:

China

Energy Star:

Yes

Title 20:

Yes

Title 24:

Yes

UL Ratings:

cUL,UL cUL/UL Wet

Warranty:

5 years LED module, 2-years for finishes, lifetime on the motor, 1 year for all other parts.

Additional Details

Chain Cord Features:

Rod: (1) 0.75"D X 4.5"H

Features:

• WAC Smart Fans are made with incredibly efficient and completely silent DC motors and are up to 70 more efficient than traditional fans. Every fan is factory-balanced and sound tested to ensure each fan will never wobble, rattle or click.
• The WAC Smart Fan iOS or Android app can sync with your ceiling fan to control fan speed, use smart features like breeze mode, adaptive learning, create groups, and reduce energy costs.
• UL & cUL Wet Location Listed for indoor or outdoor applications. Energy Star Certified for energy efficiency. Can be installed on slope ceilings up to a 30 degree slope (SKU SC-FINISH Slope Ceiling Kit available for 30-45 degrees). Includes a 6in Downrod. Additional downrod lengths sold separately (SKU DR-FINISH).
• WAC Smart Fans can be controlled from the WAC Smart Fan app, enabling smart features and full control of your fan from an iOS or Android device. Download the app to pair with the smart home tech you know and love, including Google Assistant, Amazon Alexa, Samsung Smart Things, Control4, and Josh AI. Coming Soon: Savant, Lutron Homeworks, and Nest.
• Battery operated Bluetooth remote control with wall cradle is included (Part RC20-WT). An optional Bluetooth hardwired wall control is sold separately (Part WC20-WT). Wall and remote control use Bluetooth for improved range and can control an unlimited amount of fans within range.

Glass Features:

Frosted Glass

Material:

Aluminum/Steel
